Axis Lines Explained: A Simple Trick for Better Gesture Drawings
A simple way to organize tilt, balance, and rotation in your figure drawings.
STRUCTURAL AXES / INTERACTIVE STUDY
Three forms. One connected pose.
Explore how the head, chest, and pelvis face, lean, and turn in relation to each other.
Orientation describes which direction an individual mass faces, such as the head, rib cage, or pelvis. In this example, the forms turn together to show a change in the overall facing direction.
Orientation and rotation are closely related: both describe which way the masses face. Here, we use orientation for the facing direction of one mass and rotation for how several masses turn relative to one another, such as the rib cage turning against the pelvis.
The photo boxes stay fitted to the pose while the model explores possible movements. These are simplified forms; the pelvis is estimated beneath clothing.
Most artists learn about the line of action pretty early when they start practicing gesture drawing. It's the flowing curve that captures the movement of the pose. That line helps the drawing feel alive.
Structural axes add another useful reading: they show how individual forms face, tilt, and rotate in space.
For a long time my gesture drawings had energy but felt unstable. Heads drifted away from torsos. Hips didn't line up with shoulders. Something always felt slightly wrong and I couldn't explain why.
Then someone showed me something simple: simplify the head, rib cage, and pelvis into volumes, and give each form its own center axis.
It sounds almost too basic. But that tiny idea changed how I approached figure drawing.
Once I started looking for structural axes in the body, poses became easier to understand. Balance improved. Rotation made sense. The whole figure started feeling more grounded on the page.
In this guide we'll break down:
- what axis lines are
- how they work with gesture drawing
- where to place them in the body
- simple exercises that help you see them faster
It's a small trick, but it can make a big difference in your figure drawings.
If you want a more focused breakdown of the two most useful transverse axes, read Shoulder and Hip Axis Lines in Gesture Drawing.
What Are Axis Lines in Gesture Drawing?
Artists use axis lines to describe both the movement of a pose and the orientation of its individual forms. Gesture axes help organize movement and directional relationships. Structural axes help describe how a form sits in three-dimensional space.
In the interactive box study above, the short axes are structural: each belongs to a simplified head, rib cage, or pelvis volume and moves with that form.
When I first heard about axis lines I ignored them. Gesture drawing felt like it should be fast and loose. I figured structure would slow me down.
But the opposite happened.
Without axis lines my drawings looked crooked. The torso leaned one way while the head leaned another. The pose technically looked correct, but the structure felt unstable.
Once I started dropping in a center line through the body, everything improved.
Structural axes help show:
- orientation
- tilt
- symmetry
- rotation
You'll usually see them in three major areas of the body.
Common structural axes artists use
- head center line
- rib cage center line
- pelvis center line
The head example is the easiest to see. When the head turns, the center line curves across the face. That line instantly tells us where the head is pointing.
The rib cage works the same way. The torso rarely sits straight upright. It twists, bends, and leans constantly.
A quick axis line through the rib cage shows that direction before you even draw the anatomy.
The pelvis also has its own axis. Sometimes the pelvis tilts forward, sometimes back, sometimes sideways. A center line helps reveal that tilt.
Beginners often skip this step during gesture drawing. I definitely did.
But when you pause for a moment and ask "Where is the center of this form pointing?", the drawing suddenly makes more sense.

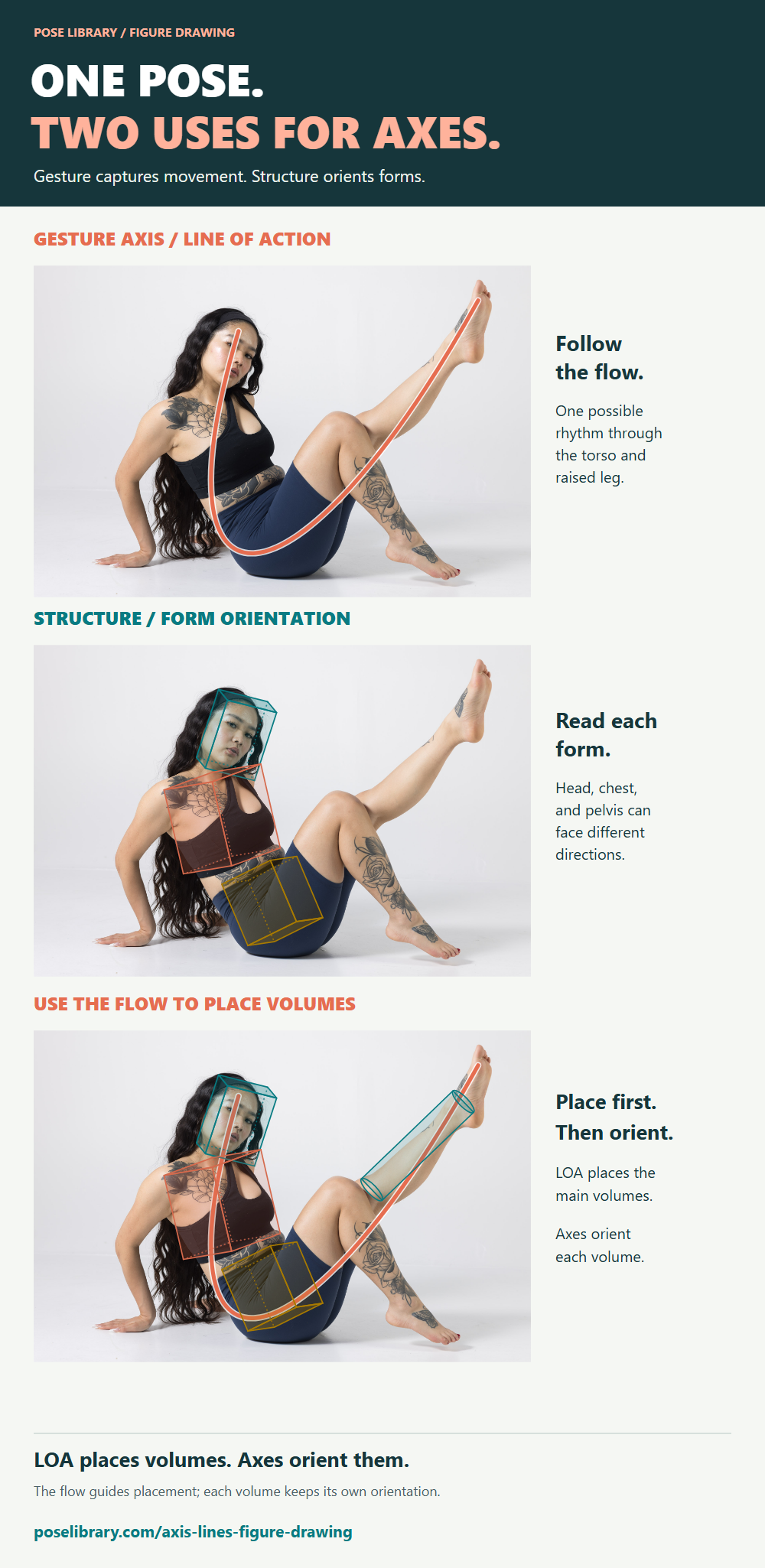

Gesture Axes and Structural Axes in Figure Drawing
Artists use axis lines in different ways when constructing the human figure. Some describe the overall gesture and movement of a pose, while others help establish the orientation of individual forms in three-dimensional space.
Gesture axes are used to capture movement and direction. The line of action, for example, simplifies the overall flow of a pose into a single sweeping line. Other directional lines can help establish the relationships between the shoulders, pelvis, and limbs.
Structural axes describe how individual forms are positioned in space. By simplifying the head, rib cage, and pelvis into basic volumes, such as boxes, we can use centerlines and directional axes to understand how those forms face, tilt, and rotate.
These approaches complement each other. Gesture lines help us capture the energy of a pose, while structural axes and simple volumes help us understand its three-dimensional construction.
A strong figure drawing uses both: gesture to establish movement and structure to give that movement believable form.
The line of action can also help us place our volumetric shapes: use its rhythm to locate the head, rib cage, pelvis, and continuing limbs. Our structural axes then help orient those shapes. The flow guides the arrangement; each volume still has its own facing, tilt, and rotation.
A practical way to combine them:
- Establish the overall flow with a gesture axis, such as a line of action.
- Use that flow to place simple volumes for the head, rib cage, pelvis, and limbs.
- Add structural axes to compare how those volumes face, tilt, and rotate.
Where Axis Lines Appear in the Human Body
Axis lines appear anywhere a form has a clear orientation. In figure drawing we usually focus on the torso.
The two biggest structural forms are:
- the rib cage
- the pelvis
Each one has its own axis.
For the rib cage I usually imagine a line running down the center of the chest. This line shows whether the torso is leaning forward, backward, or twisting.
The pelvis has a similar center line.
There are also helpful landmarks you can use to estimate the axis.
Useful anatomical guides
- the ends of the clavicles help indicate the shoulder axis
- the ASIS points on the front of the pelvis help show pelvic tilt
- the PSIS points on the back can also guide the pelvic axis
Sometimes those landmarks are visible in a pose reference. Sometimes they're hidden by muscle or clothing.
When that happens you can still estimate the direction by observing how the torso is leaning.
You don't need perfect anatomy knowledge for this. You just need to observe the tilt of the form.
Over time your eye starts recognizing these alignments automatically.
How Axis Lines Help Show Body Rotation
Axis lines become really helpful when the body starts twisting.
If you've ever tried to draw a twisting pose, you know it can get confusing fast. The shoulders rotate one way while the hips rotate another.
This is where axis lines help clarify things.

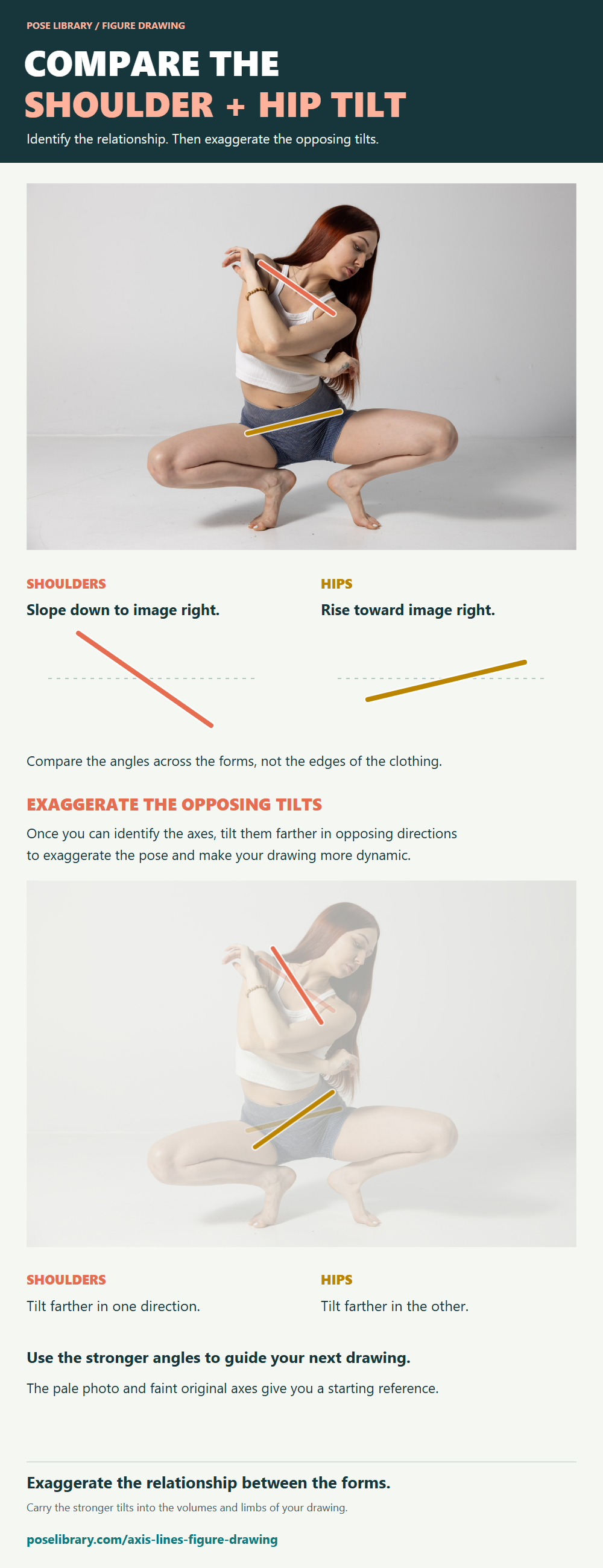

The shoulder axis and hip axis rarely stay parallel.
When the body rotates you'll often see something like this:
- shoulders tilted one direction
- hips tilted another direction
This opposing tilt is part of what artists call contrapposto.
Contrapposto is just a fancy word for the natural shift of weight in the body. One hip rises while the other drops. Shoulders counterbalance that movement.
Axis lines make this relationship easier to see.
Instead of guessing the rotation, you simply draw the shoulder line and the hip line. Suddenly the pose makes sense.
Once I started doing this my drawings stopped feeling stiff. The rotation felt believable.
And the cool thing is, these lines are very quick to draw.
When to Add Axis Lines During Gesture Drawing
Some artists add axis lines immediately. Others wait until after the gesture stage.
Both methods work.
Personally I like to start with the gesture first.
My process usually looks like this.
Typical gesture workflow
- Draw the line of action
- Block in the rib cage and pelvis
- Add axis lines to those forms
This keeps the gesture loose while still adding structure early in the drawing.
If I'm doing very fast gesture practice, sometimes I skip axis lines completely. In 20-second sketches there just isn't time.
But once the drawing goes beyond about 1 minute, axis lines become very helpful.
They help keep the torso organized while the limbs are added.
A lot of instructors teach this approach in figure drawing classes because it balances gesture and structure.
Common Axis Line Mistakes Beginners Make
I've seen the same mistakes appear again and again in figure drawing practice.
I made most of them myself.
Here are a few that show up often.
Drawing the axis line too late
Some artists wait until the drawing is almost finished. At that point the structure is already locked in.
It works much better if the axis line is added early.
Ignoring torso rotation
Beginners sometimes draw the torso axis perfectly vertical even when the body is twisting.
The axis line should follow the direction of the form.
Forgetting shoulder and hip axes
These two lines are extremely important for understanding rotation.
Even quick sketches benefit from them.
Overcomplicating gesture
Some artists try to draw too many construction lines too early. Gesture drawing should stay simple.
Axis lines are meant to clarify the drawing, not overwhelm it.
Simple Exercises to Practice Axis Lines
The best way to understand axis lines is to practice spotting them in real poses.
One exercise I like is very simple.
Grab a few pose reference photos and try to identify the center lines of the body before drawing anything else.
You can even trace them at first.
Helpful practice exercises
- trace axis lines over reference photos
- sketch shoulder and hip axes on poses
- practice 30 second gestures by establishing the line of action first, then adding axis lines
Another good exercise is drawing simple mannequins.
Instead of focusing on anatomy, focus on the orientation of the forms. Rib cage box. Pelvis box. Axis lines through each.
After doing this for a while, something interesting happens.
You start seeing axis lines automatically when looking at poses.
That's when the concept really clicks.

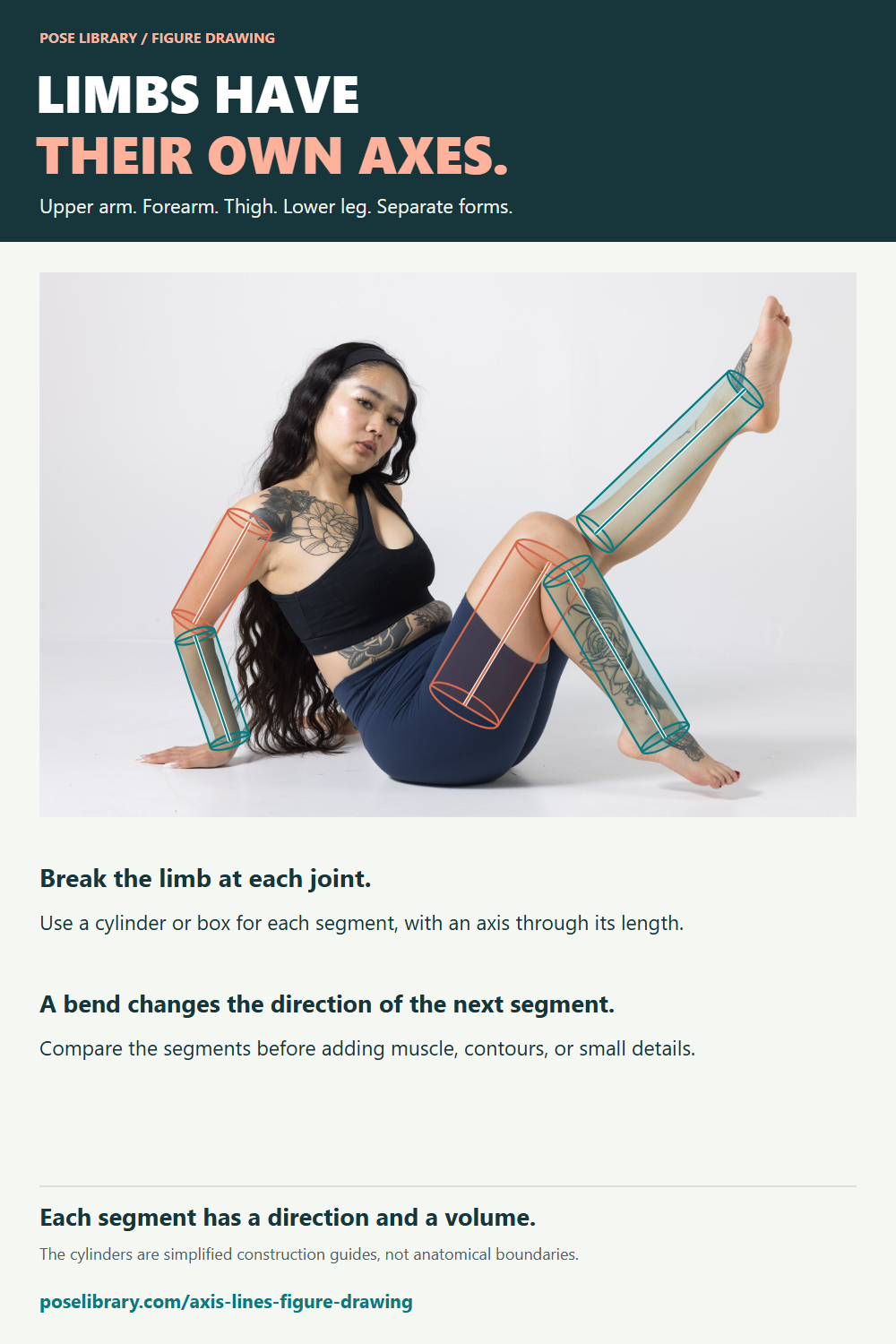

Limbs and Hands Have Axes Too
The idea does not stop at the head and torso. Upper arms, forearms, thighs, and lower legs can each be simplified into boxes or cylinders. Give every segment its own axis along its length, then compare how the next segment turns at the elbow or knee.
A gesture can connect the whole limb, while structural axes describe the direction of each separate volume. Simple cross-sections help show which way a cylinder points and how much it is foreshortened.

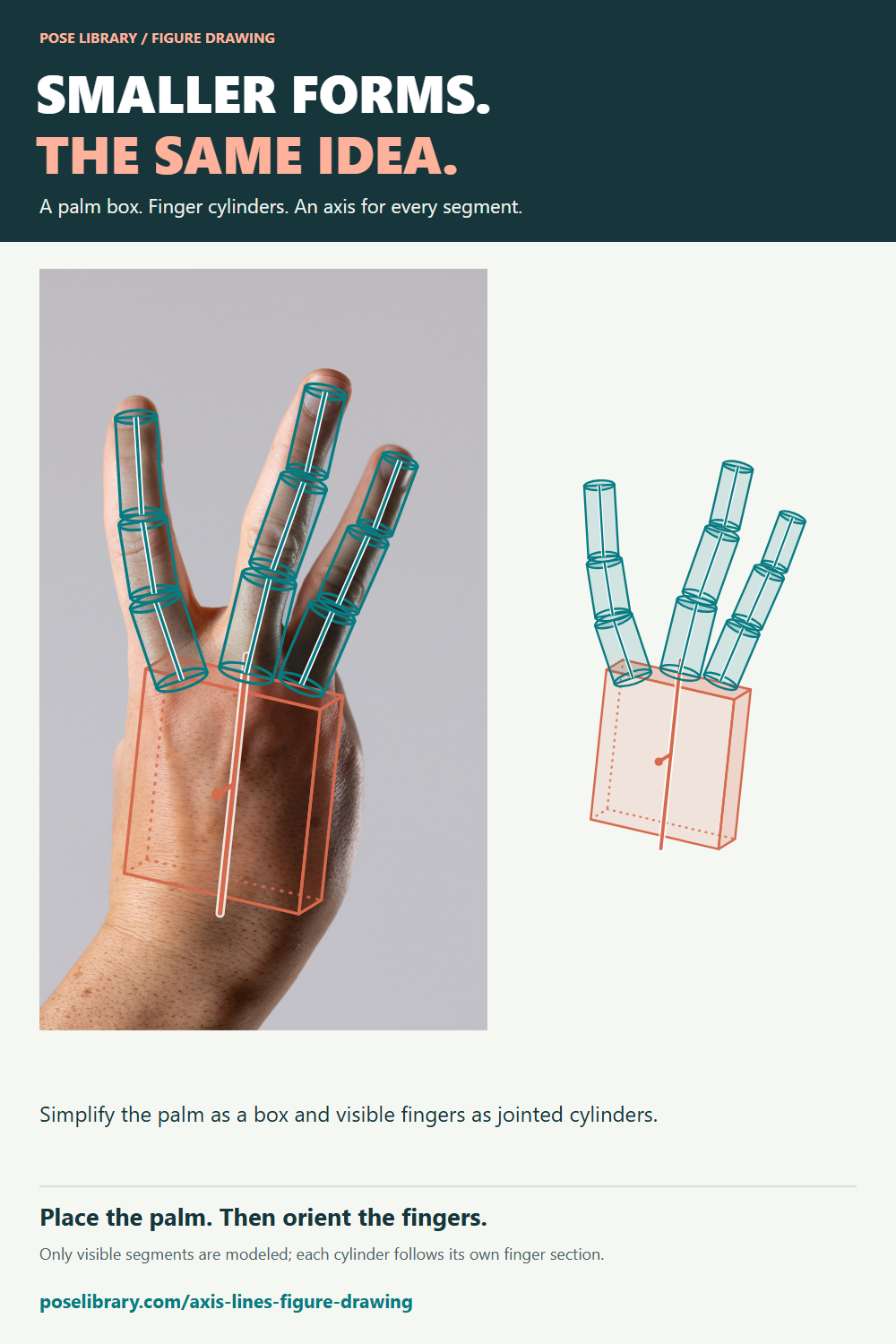

Break the hand into a palm box and finger cylinders
Treat the palm as a shallow box or wedge. Build each visible finger from short cylinders or small box-like volumes, changing direction at its joints. A center axis through each section helps you compare its orientation to the palm and the neighboring fingers.
The thumb has its own base and direction, so give it a separate construction rather than forcing it into the same row as the fingers. In the study below, only the clearly visible extended finger sections are modeled.
Try this with our hand pose references: place the palm first, choose one finger, and compare the directions of its sections before drawing the contour.
Conclusion
Axis lines might seem like a small idea in figure drawing, but they make a huge difference in how a pose reads.
The line of action captures movement.
The axis line organizes the structure.
When both are used together, gesture drawings become much stronger. The body feels balanced. Rotations make sense. The figure starts looking believable on the page.
If you're practicing gesture drawing regularly, try adding center lines through the torso forms. Just a quick mark that shows orientation.
With enough practice you'll start noticing axis lines everywhere in pose references.
And once you see them, it becomes much easier to build convincing figure drawings.
For the next step, practice the shoulder and hip axis line workflow on one-minute gesture poses.
For a closer look at the torso midline, read How to Draw the Center Line of the Torso, with front and back landmarks and a short practice exercise.
